TAG APEX X7 Banner

TAG APEX X7 WORKSTATION CASE

• AI & Multi-GPU Ready : Supports up to 8 expansion slots for high-load computing.

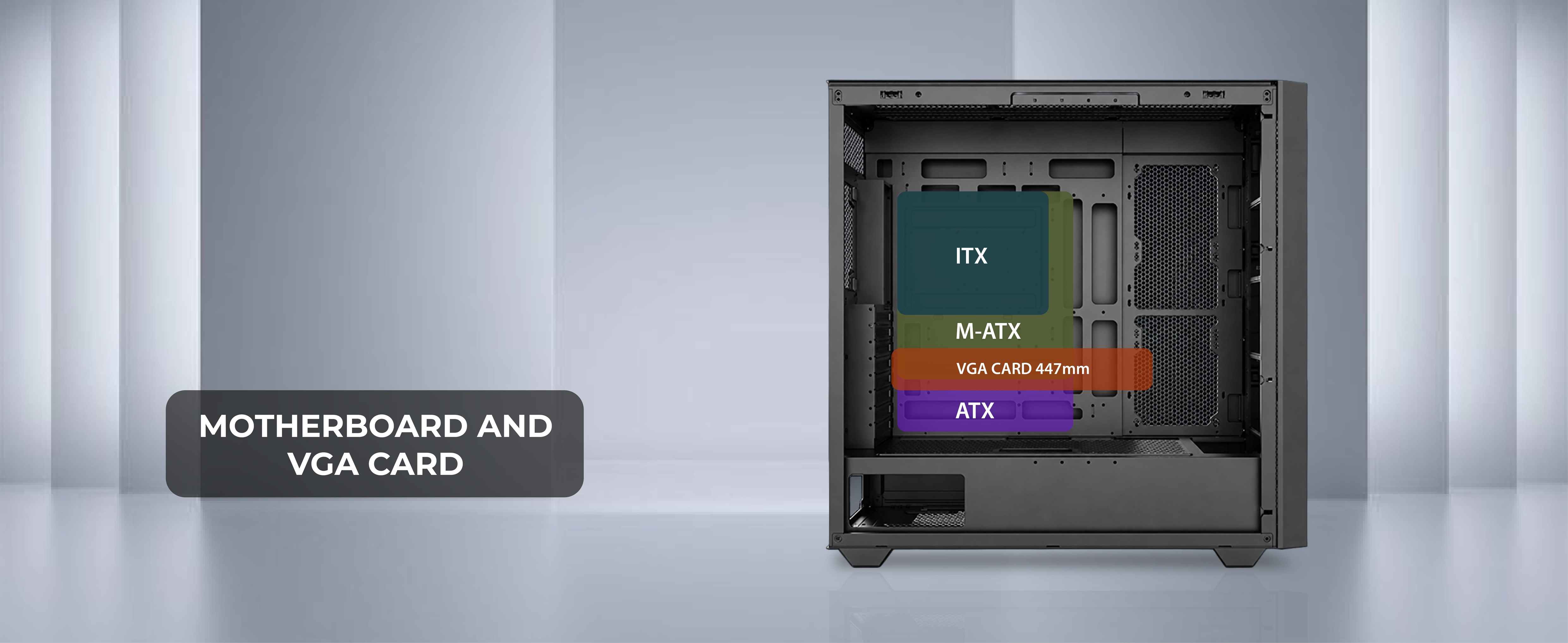

• E-ATX Compatible : Full support for E-ATX, ATX, Micro-ATX & ITX architectures.

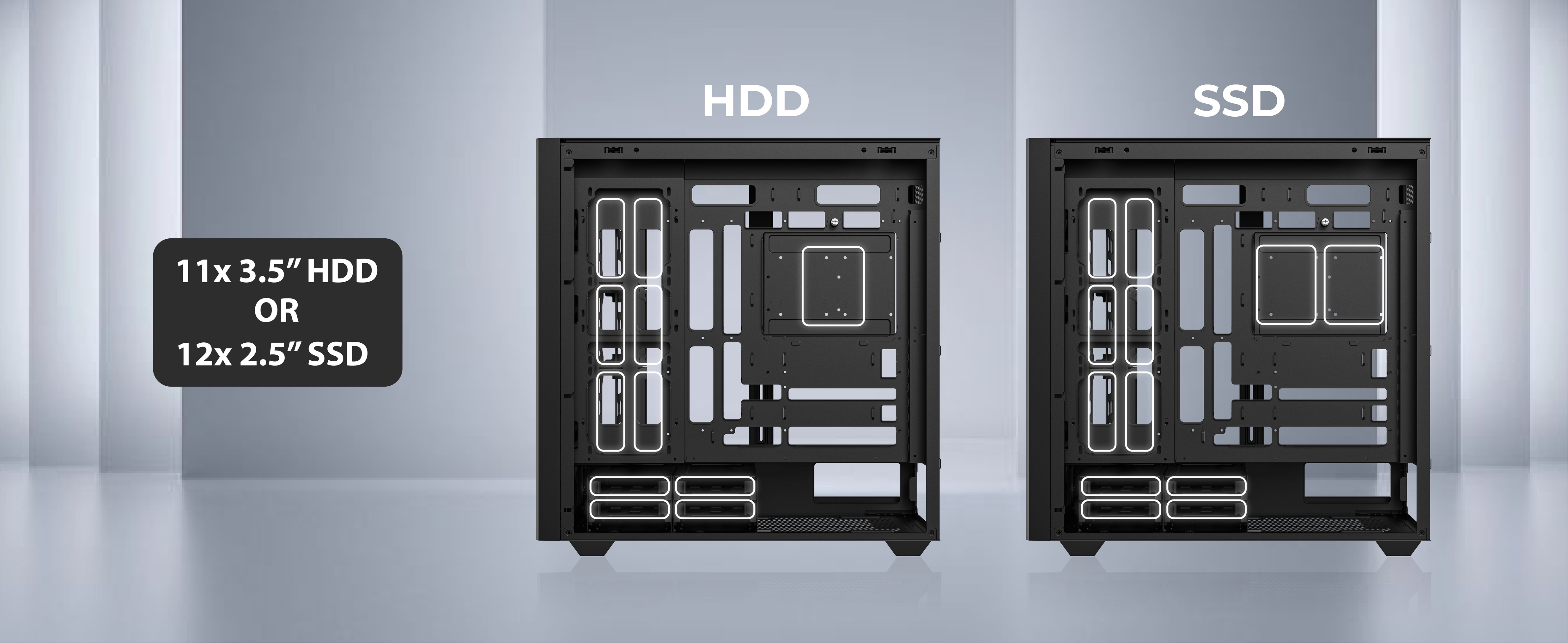

• Unrivaled Storage Capacity : 11 HDD + 13 SSD bays for massive data storage needs.

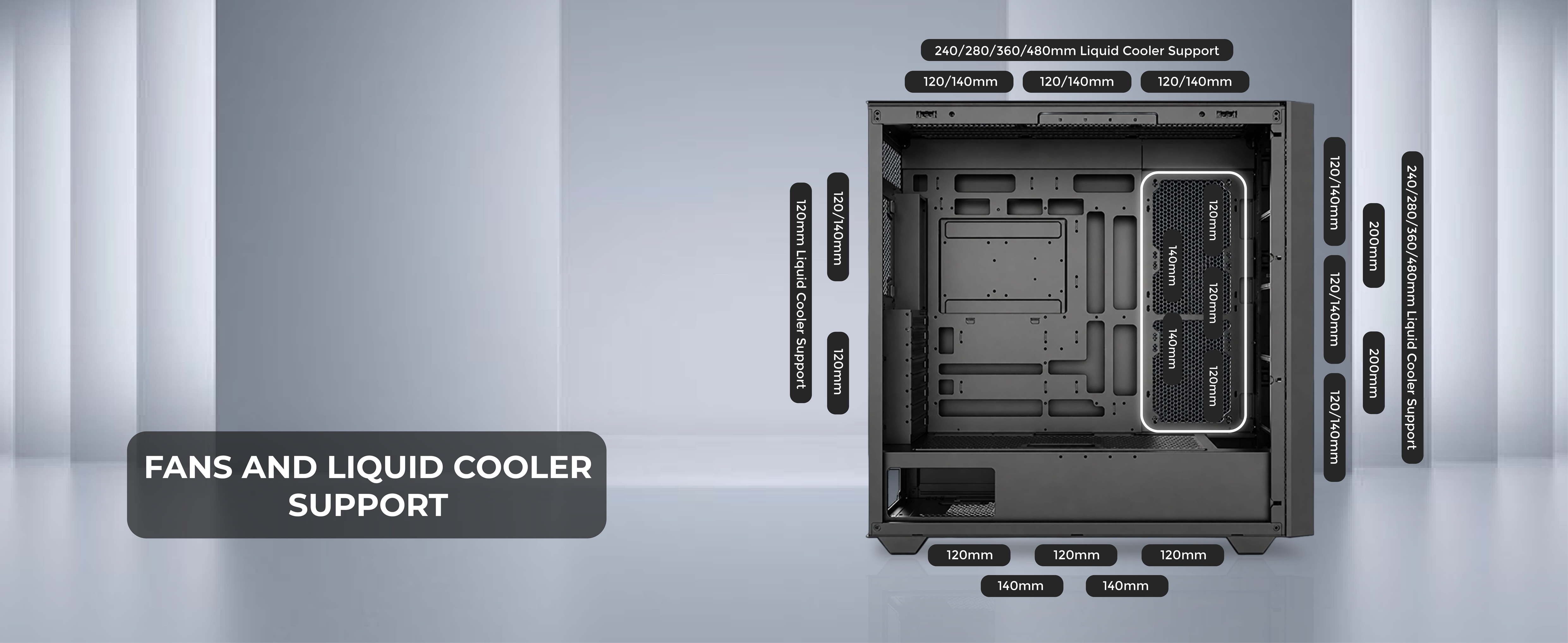

• Extreme Cooling : Supports up to 480mm radiators & 12x 140/120mm fans.
• Pre-Installed PWM Fans : Includes 4x 140mm high-performance PWM fans out of the box.

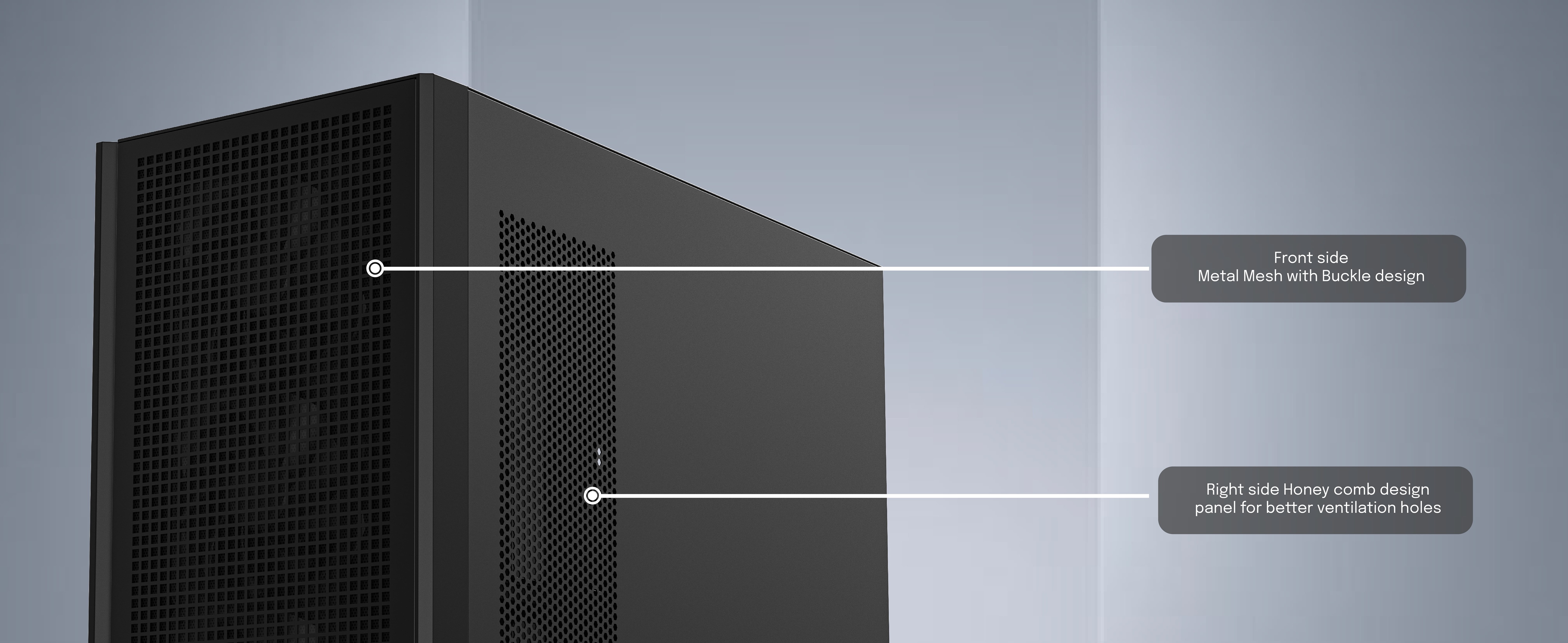

• High-Airflow Mesh : Front & side mesh panels provide high-throughput passive & active ventilation.
• High-Power Ready : Engineered for AI, multi-GPU rendering, and server workstation builds.

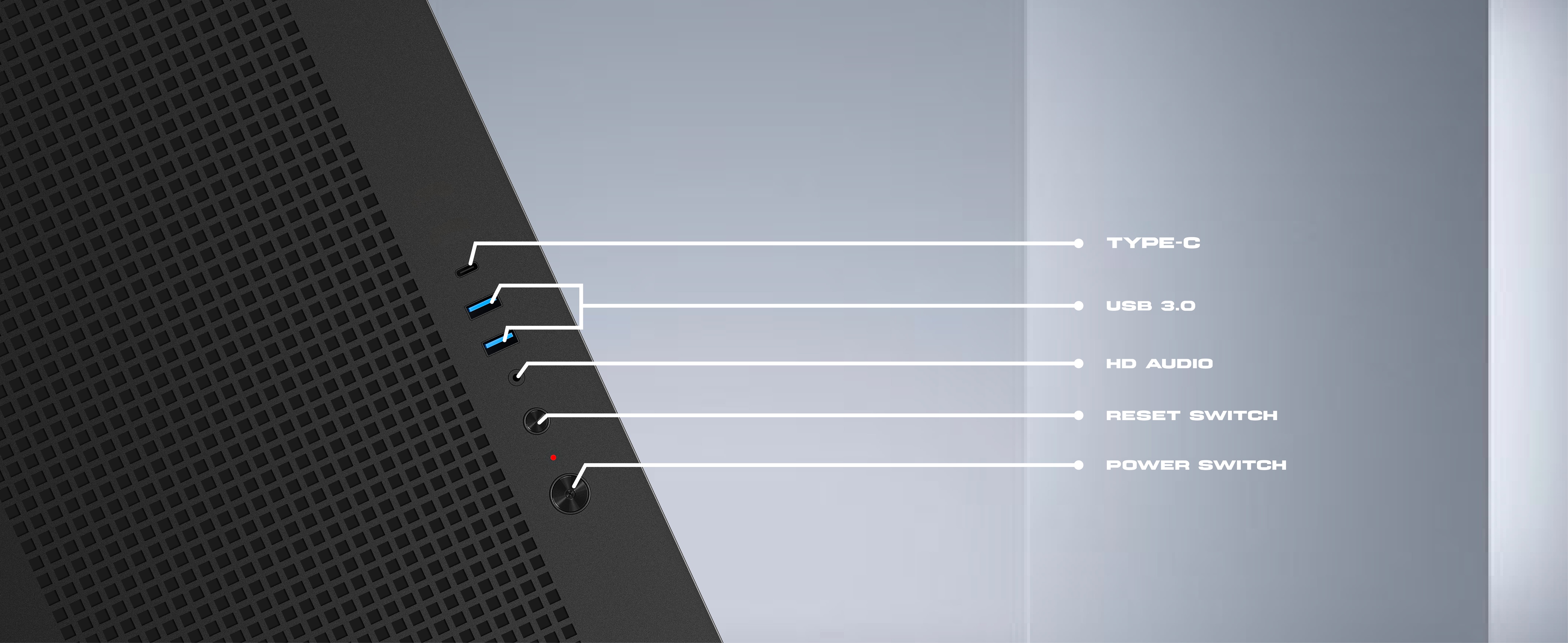

• Modern Connectivity : Front USB Type-C & dual USB 3.0 ports.
• Smart Cable Routing : Dedicated channels and tie points keep complex builds organized.

Feature 1 Feature 2 Feature 3 Feature 4 Feature 5 Feature 6

SPECIFICATIONS

Dimensions L565 x W248 x H521mm
Form Factor Full Tower
Materials SPCC 0.8mm / ABS / Solid Panel / Tempered Glass
Mainboard Support E-ATX (Upto 33mm), ATX, Micro-ATX, ITX (RC Edition)
Front Access & Controls Power, Reset, 2 x USB 3.0, 1 x Type-C, TRSS Headphone / Mic (Single Jack)
Front/Side Panel Mesh / Tempered Glass

Drive Bays

Expansion Slots 8
3.5" / 2.5" 11/12 (2.5" Convertible) side cage
2.5" 2

Fan Support

Front 3 x 120mm / 3 x 140mm / 2 x 200mm
Top 4 x 120mm / 3 x 140mm
Side 3 x 120mm / 2 x 140mm (optional)
Shroud 3 x 120mm / 2 x 140mm
Rear 2 x 120mm / 1 x 140mm
Included Fan(s) 4 x 140mm PWM Fans Pre-Installed

Radiator Support

Front 120 / 140 / 240 / 280 / 360 / 420mm
Top 120 / 140 / 240 / 280 / 360 / 420mm
Rear 120 / 140mm

Clearance

Max GPU Length ≤ 447mm
Max CPU Cooler Height ≤ 186mm
Max PSU Length (Include cable) ≤ 280mm

Miscellaneous

Mesh Top / Bottom
Warranty 1 Year
