TAG APEX X3 WORKSTATION CASE (SOLID)

• AI & Multi-GPU Ready : Supports up to 7 expansion slots for high-performance builds.

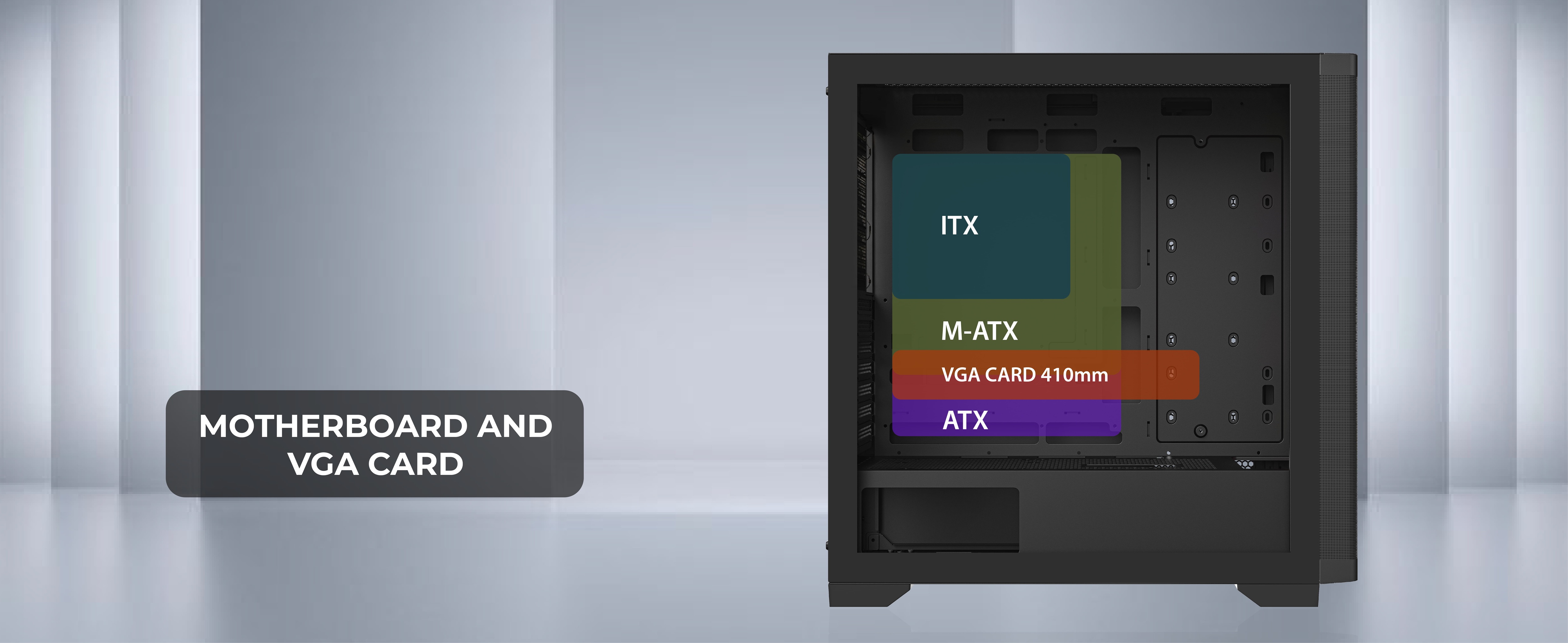

• Wide Motherboard Support : ATX & Micro-ATX, including reverse-connection designs.

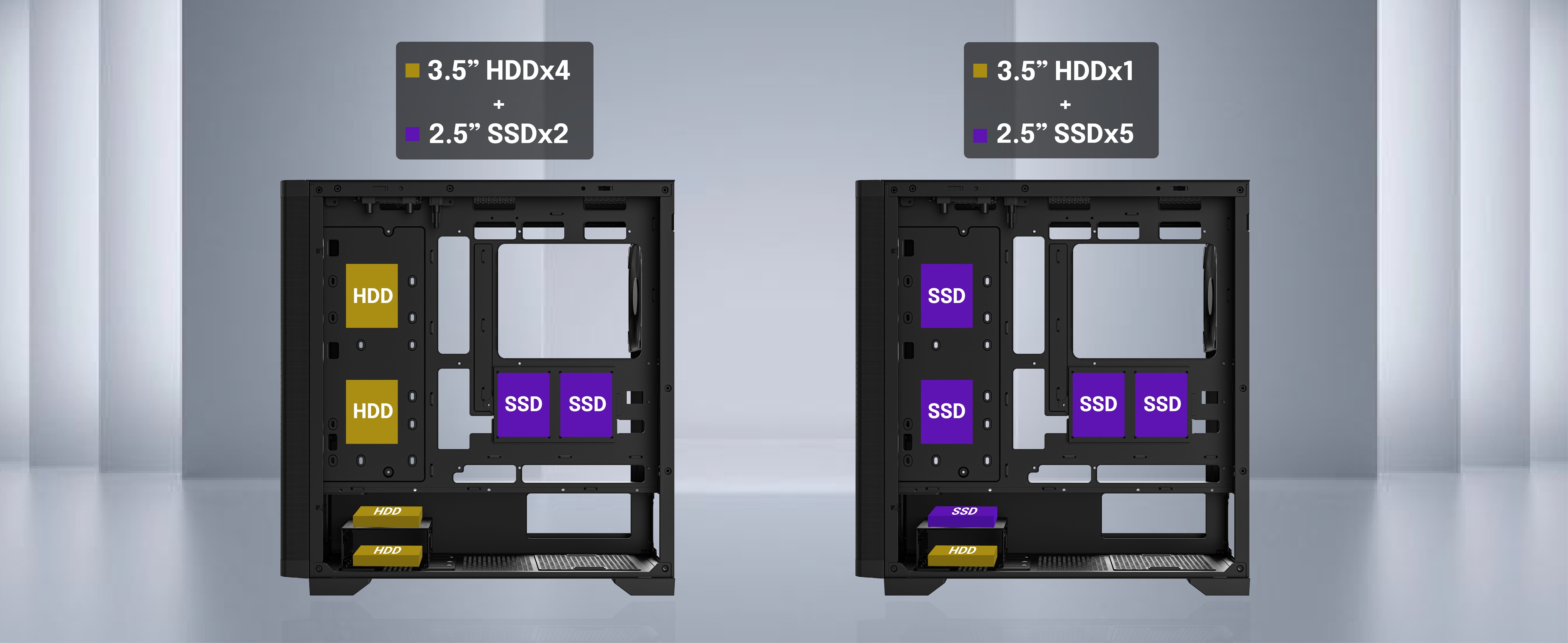

• Massive Storage : 4 HDD bays + 4 SSD bays for high-capacity storage.

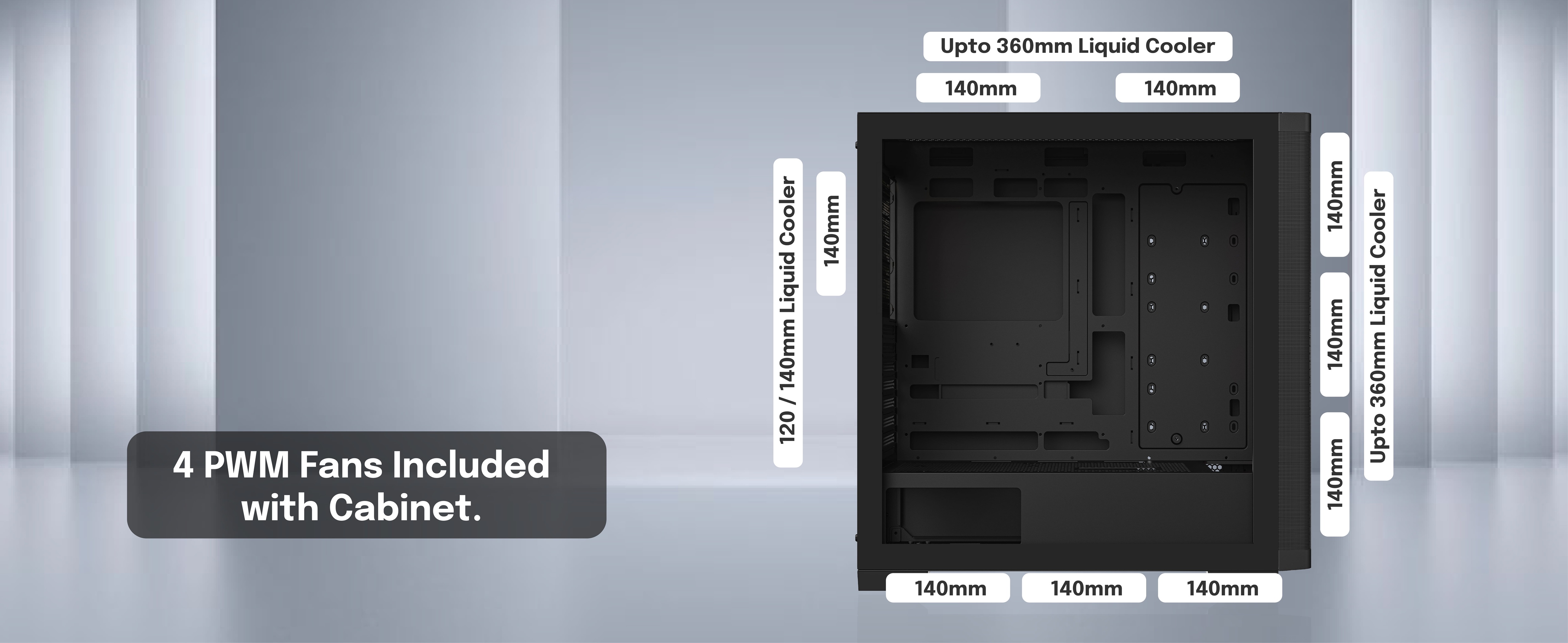

• Extreme Cooling : 4 pre-installed 140mm solid PWM fans; supports up to 360mm radiators & up to 10x 140/120mm fans.

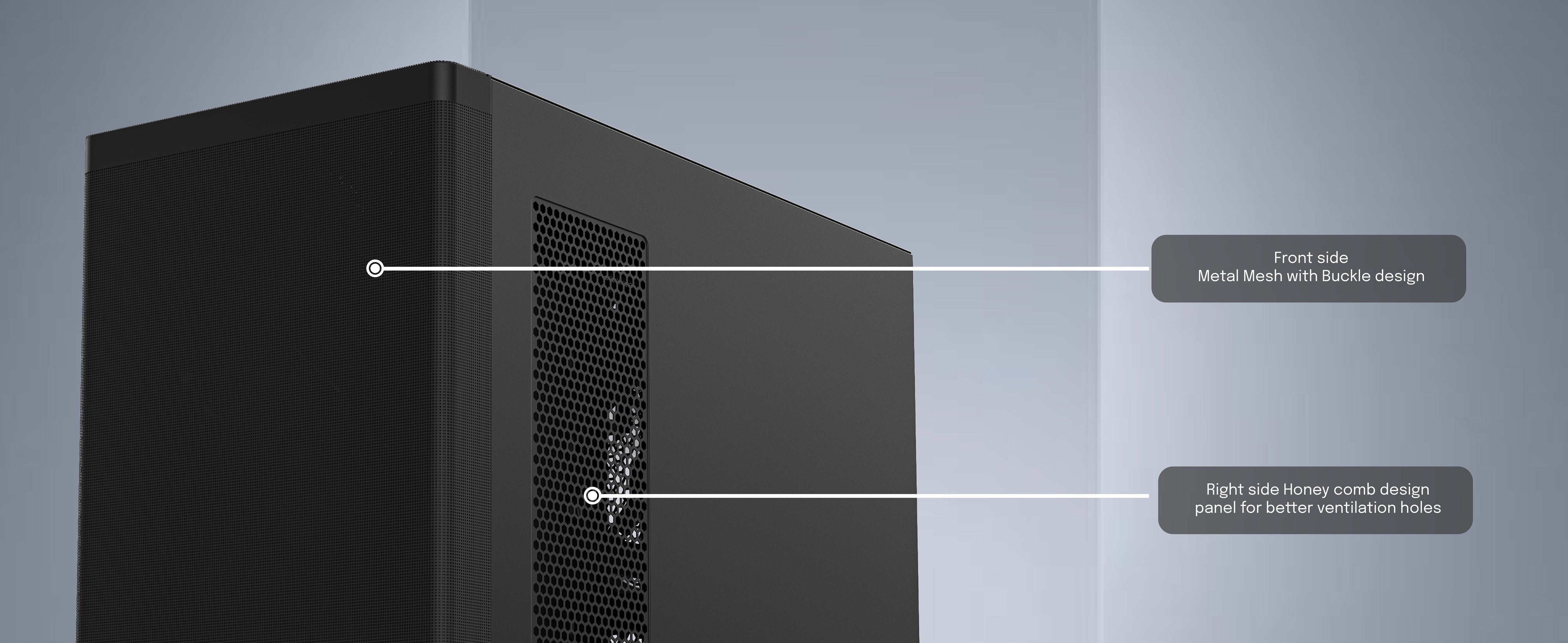

• High-Airflow Mesh : Front & side mesh panels for efficient ventilation.
• High-Power Support : Ready for demanding multi-GPU & workstation systems.

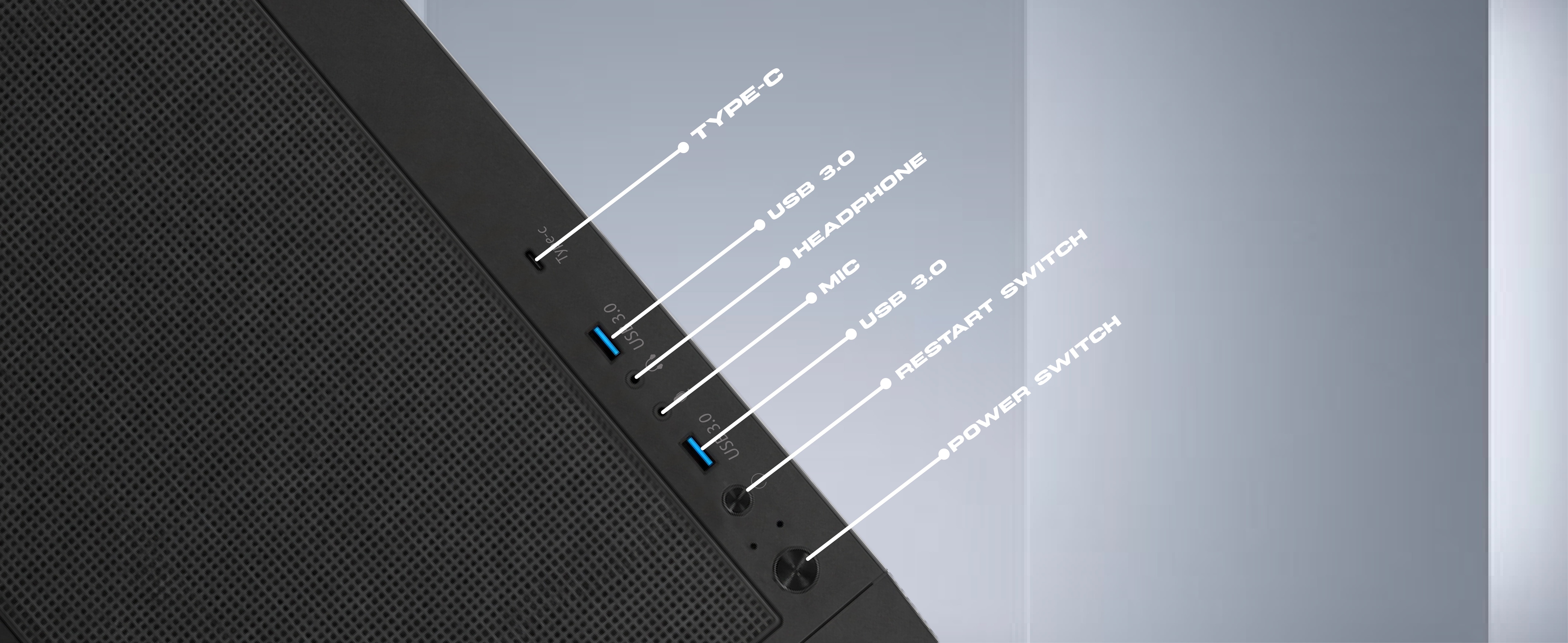

• Modern Connectivity : Front USB Type-C 10Gbps & dual USB 3.0 for fast, convenient access.
• Easy Installation : Removable panels for quick component access.
• Smart Cable Management : Dedicated routing space for a clean interior.

Feature 1 Feature 2 Feature 3 Feature 4 Feature 5 Feature 6

SPECIFICATIONS

Dimensions L472 x W238 x H465mm
Form Factor Mid Tower
Materials SPCC 0.6mm / ABS / Solid Panel / Metal Mesh
Mainboard Support ATX, Micro-ATX, ITX (RC Edition)
Front Access & Controls Power, Reset, 2 x USB 3.0, 1 x Type-C 10Gbps, TRS Headphone / Mic (Dual Jack)
Front/Side Panel Mesh / Solid Panel / Metal Mesh

Drive Bays

Expansion Slots 7
3.5" / 2.5" 3/3 (2.5" Convertible) side cage
2.5" DT 2

Fan Support

Front 3 x 120mm / 3 x 140mm
Top 3 x 120mm / 2 x 140mm
Side 0
Shroud 2 x 120mm
Rear 1 x 120mm / 1 x 140mm (PWM Fan)
Included Fan(s) Pre-installed 4x 140mm Solid PWM Fans (3 in Front + 1 in Rear)

Radiator Support

Front 120 / 140 / 240 / 280 / 360 / 420mm
Top 120 / 140 / 240 / 280 / 360mm
Rear 120 / 140mm

Clearance

Max GPU Length ≤ 410mm
Max CPU Cooler Height ≤ 175mm
Max PSU Length (Include cable) ≤ 250mm

Miscellaneous

Vertical GPU Movable Expansion Slot
Dust Filter Top / Bottom
Warranty 1 Year
